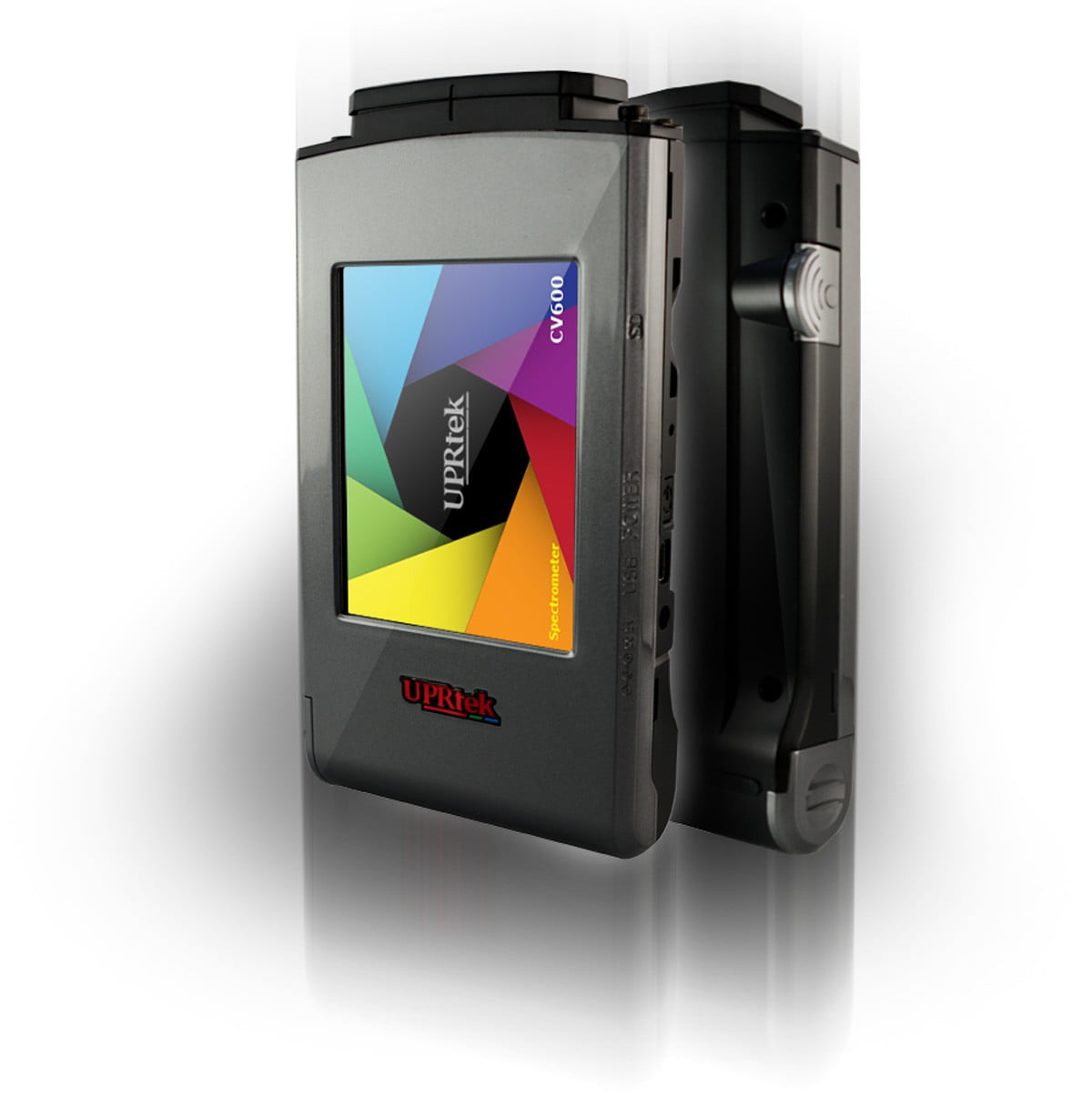

CV600 Spectral Color Meter
|
Spectrum
|
Sensor |
CMOS Linear Image Sensor |
Wavelength Range |
380 to 780 nm |
Wavelength Data Increment |
1 nm |
Spectral Bandwidth |
Approximately 9 nm (Half Bandwidth) |
Wavelength Reproducibility |
± 1 nm *1 |
Measurement Range |
5 to 100,000 lx |
Illuminance Accuracy |
Illuminant A @ 2,856 K*2 |
± 3% |
Illuminance Repeatability (2σ) |
0,5% |
Color Accuracy |
± 0.0025 in CIE 1931 x,y |
Color Repeatability (2σ) |
0.0005 in CIE 1931 x,y (30 to 100,000 lx)
0.0015 in CIE 1931 x,y (5 to 30 lx) |
CCT Accuracy |
± 2% |
CRI Accuracy @ Ra |
± 1.5% |
Stray Light |
-25 dB max. *3 |
Integration Time Range |
100us to 1,000ms |
Digital Resolution |
16 bits |
Flicker |
Measurement Range |
5 to 100,000 lx |
Sampling Rate |
100k sample/sec |
Frequency Range |
5 to 50k Hz |
Frequency Resolution |
2 or 3 Hz |
Accuracy |
5% (5 to 30K Hz)*6 |
Feature |
Capture Function |
One time/Continuous |
Operation Mode |
Standalone Mode/WiFi Mode*4/USB Mode (MSC Mode*5) |
Integration Mode |
Auto / Manual |

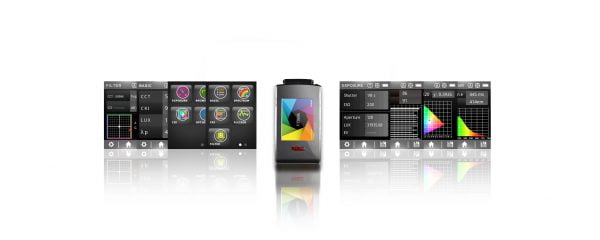

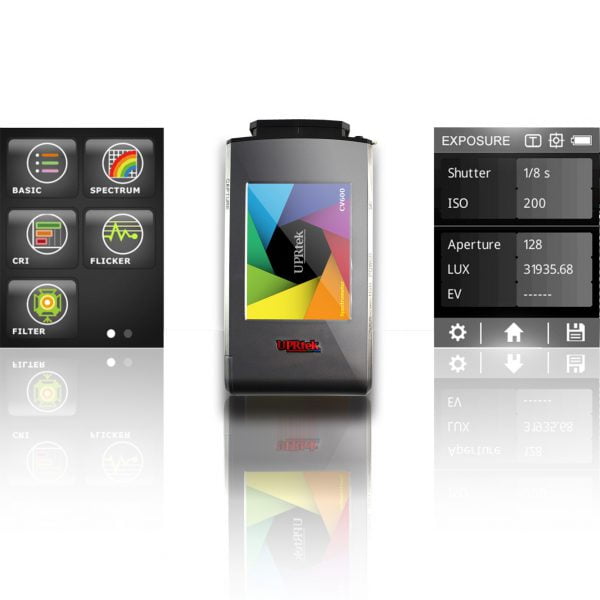

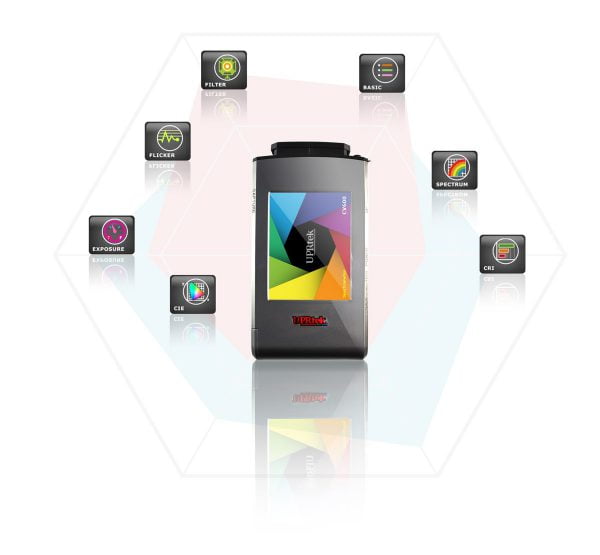

Measuring Modes |
1. Basic Mode |
2. Spectrum Mode |
3. CRI Mode |
4. Flicker Mode |
5.Flicker Risk Mode |
6. Filter Mode |
7. Exposure Mode |
8. CIE 1931/1976 Chromaticity Mode |
9. TM-30-15 Mode |
10. Compare Mode |
11. Browser Mode |
12. Option Mode |
Measuring Capabilities |
1. Illuminance (LUX)/Foot Candle (fc) |
2. Correlated Color Temperature (CCT) |
3. CIE Chromaticity Coordinates |
(1) CIE 1931 x,y Coordinates |
(2) CIE 1976 u’,v’ Coordinates |
4. Delta uv (Duv) |
5. Color Rendering Index (CRI, Ra)/R1 to R15 |
6. Television Lighting Consistency Index (TLCI) |
7. Television Lighting Matching Factor (TLMF) |
8. Spectral Similarity Index (SSI) |
9. Irradiance(380nm~780nm)(W/m2) |
10. TM-30-15 (Rf, Rg, Color Vector Graphic) |
11. Flicker Frequency |
12. Percent Flicker |
13. Flicker Index |
14. LB/CC Filter |
(1) Light Balancing Filter (LBf) |
(2) Color Correction Filter (CCf) |
(3) Light Balancing Index (LBi) |
(4) Color Correction Index (CCi) |
15. Exposure |
(1) Shutter Priority (T Mode) |
(2) Aperture Priority (F Mode) |
(3) Shutter / Aperture Priority (TF Mode) |
(4) Exposure Value (EV Mode) |
16. Spectral Power Distribution (SPD) mW/m2 |
17. Peak Wavelength (λp) |
18. Peak Wavelength Value (λpV) |
19. Intergration Time (I-Time) |
System Configurations |
Display |
3.5″ 320X240 Resistive Touch LCD |
Max. Files |
≒ 69,000 Files @ 8GB SD Card (Excel + JPG) |
Battery Operation Time |
≦ 5 hours / Fully Charged |
Power |
Adapter; 2500 mAh (3.7V Rechargeable Li-ion Battery) |
Data Output Interface |
SD Card (SD2.0,SDHC/up to 32G)/Mini USB Port (USB 2.0)/WiFi SD Card compatible with iOS and Android |
Data Format |
Compatible Excel/JPG |
Dimensions |
147.5 x 78 x 24 mm (H x W x D) |
Weight (with Battery) |
225 g ± 10 g |
Operating Temperature/Humidity |
0 to 35 ℃, relative humidity 70% or less without condensation |
Storage Temperature/Humidity |
-10 to 40 ℃, relative humidity 70% or less without condensation |
Display languages |
English/Traditional Chinese/Simplified Chinese/Japanese/Spanish/German/French/Italian/Russian |
|
Cosine Correction |
 |
*1:Input source must be a stable light source.
*2 :Temperature 23±2℃ and relative humidity 50% or less.
*3:Input the 550nm monochromatic light and measure the stray light ratio at 550nm ± 40nm.
*4:It can be connected to mobile phones and tablets.
*5:MSC Mode- Mass Storage Class.
*6:Test condition is based on Lux > 300 lux of sine wave light source.
The company reserves the right to change product specifications at any time without prior notice. |
